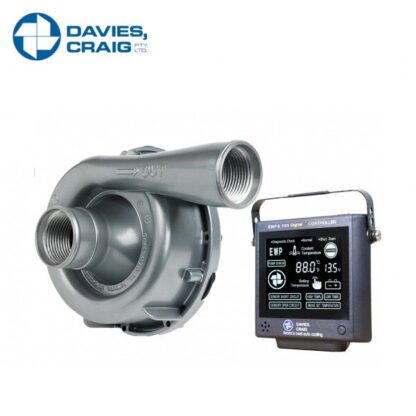

Davies Craig EWP150 High Flow Alloy Electric Water Pump & Controller Kit

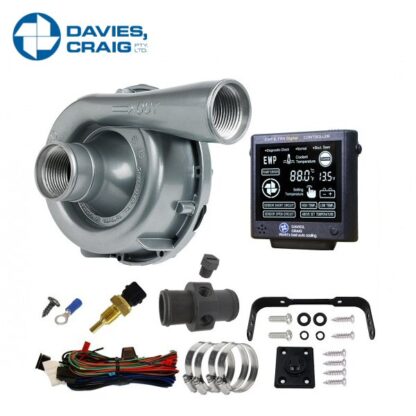

Description The world’s first universal-fit, automotive Electric Water Pump goes one better with the EWP®150. Suitable for all makes and models – will excel on large six-cylinder engines, V8 engines, heavy duty 4WDs and most engines over 400 HP. Muscle up your engine cooling system with the Davies Craig EWP® 150 alloy Electric Water Pump and Controller kit. Like all EWPs, this advanced unit is designed for remote mounting in the engine bay to satisfy those higher horsepower, turbocharged, supercharged and ‘worked’ engines which develop excessive heat & intercooler applications. The compact EWP®150 alloy unit is manufactured with -AN16 ORB internal inlet and outlet fittings for neat, tight screw-in fitting applications. This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. This essential performance accessory increases power to your vehicle’s drive wheels and improves coolant temperature control. This Kit Contains The Following Parts 1 x Aluminium EWP150 Water Pump 1 x EWP/Fan Digital Controller & Mounting Plate Bracket 1 x Sensor Thermal – coolant temp – ¼” NPT thread 1 x Sensor Adaptor – Nylon – In Line, 38mm (2 x 1/4″ NPT) 1 x 1/4″ NPT Nylon – Bung 1 x Wiring Harness 4 x Hose Clamps 1 x Blue 6mm Ring Terminal 1 x Screw – Self Tapping 8X3/8 BZ The compact EWP®150 alloy unit is manufactured with AN-16 ORB internal inlet and outlet fitting for neat, tight screw-in fitting applications. This rugged alloy hi-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. This essential performance part increases power to your vehicle’s drive wheels and improves coolant temperature control. The EWP®150 is a universal, do-it-yourself, easy installation fitment to engines up to seven litres. By removing the parasitic power losses of belt-driven water pumps, the EWP®150 releases up to 10kW (13hp) of extra power, increased torque and fuel savings. Combine it with the LCD EWP®/Fan Digital Controller and the pump continues to run after you’ve switched off, eliminating “heat soak” and extending engine life. The EWP®150 and LCD EWP®/Fan Digital Controller Combo Kit is the most economical way to increase horsepower and save on fuel consumption whilst caring for your engine. TECHNICAL SPECIFICATIONS EWP150 – ELECTRIC WATER PUMP Operating voltage : 3V DC to 15V DC Maximum current : 10A @ 13V Flow rate (max) : 150L/min (39.63 US gal/min) @ 13V DC Operating temp. : -40° to 130°C (-40° to 266°F) Pump design : Clockwise centrifugal with volute chamber Pump weight : 1,170 grams (2.6 lb) Pump material : Aluminium (Powder Coated) Burst pressure: 500 kPa (72.5 psi) Seal : Ceramic face seal Self Priming : No, none of our pumps are self-priming Fits hose size : 35mm to 51mm (1.38” to 2”) Internal Fitting : -Inlet & Outlet: -16AN ORB Push-On fitting Size : EWP Inlet & Outlet 38mm with 3mm Sleeve (#8510) 44mm with 6mm Sleeve (#8511) 51mm LCD FAN/PUMP CONTROLLER Voltage range : 12V DC to 29V DC Display LCD size : 64.6mm (2.54”) x 55.6mm (2.19”) Maximum current : 12Amps Warning alarm : High & low Temp., Above set temp., Sensor short circuit, Pump error, High & low voltage and Sensor open circuit Targeted (set) temperatures : Singular degrees from: 40°C (104°F)to 110°C (230°F) Memory : Set & targeted temperature Fan cut-in temp. : 3°C (5.4°F) above the targeted (set) temperature Controller type : PCB with micro-processor Sensor type : Thermister in housing Overrun/ shutdown : -10°C (14°F) below set/target temperature or 3 minutes Indicators : Temperature, power, EWP, test, fan, high & low temp, voltage, above set temperature (with alarm) Weight : 100 grams (3.5 oz) Dimensions : Length = 98mm (3.8″) Width = 95mm (3.7″) Depth = 25mm (1”)
