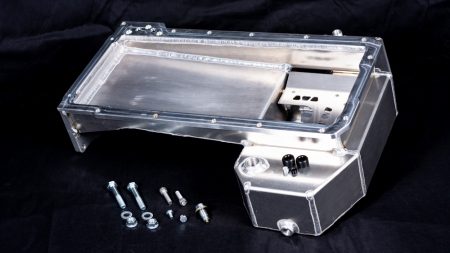

DescriptionFits a variety of domestic and import applications. Please consult dimensions to verify clearance.This low profile front sump oil pan is manufactured right here in the USA and will simplify your LS swap. We build our oil pans with a ½” thick 6061 billet aluminum flange and back plate to provide superior strength that will outlast and outperform other pans available. Our 100% aluminum design allows the Sikky pan to be lightweight and extremely durable unlike flimsy steel sheet metal pans.As with all Sikky products, this pan was tested under rigorous track conditions to ensure our customers are provided with only the highest quality parts for their LS swap!View all Sikky LSx Swap Oil Pans Pan Features:High capacity 6” deep front sump design with side kick outs for maximum oil capacity1/2” thick CNC machined 6061 Billet Aluminum Flange and back plateTurbo oil drain bungs on left and right sides of pan kickouts1/8” NPT oil temperature bungMachined gasket surface to ensure no gasket leaksRigid design like the OEM GM pan to ensure maximum strength and durabilityIncluded back plate compatible with factory dust covers to prevent debris entering the bell housingHigh ground clearance design keeps the pan from hanging out the bottom of the carHigh capacity 8 quart sump (does not include oil filter or oil filter relocation) Fitment Notes:requires your choice of 3 styles of pan mounted oil filter adapter blocks noted in available optionsincludes provision for Sikky dip stick tube which is requiredrequires OEM GTO pickup tube part number 12572654Suitable for all LS powered import and domestic vehicles including hot rods and off-road vehicles. Can be used on LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, LSX and any other LS based engine using this mount and pan bolt pattern.Aftermarket oil pumps may require modification of the windage tray and baffle as well as adding additional clearance on the pan flange. Be sure to double check the spacing between the bottom of the pickup tube and the oil pan to ensure there is at least a 3/8” gap. Oil Pan Kit Includes:Oil PanMagnetic drain plugNPT Plugs for turbo drain and temperature port bungsHardware Kit (utilizes some factory hardware not included) Available options and upgrades:Oil pump pickup tube for GTO GM Part Number 12572654OEM Oil Pan GasketDipstick assembly including tubeOil filter relocation kit with lines and remote filter mountPan mounted bottom port remote oil filter adapterPan mounted side port remote oil filter adapter
