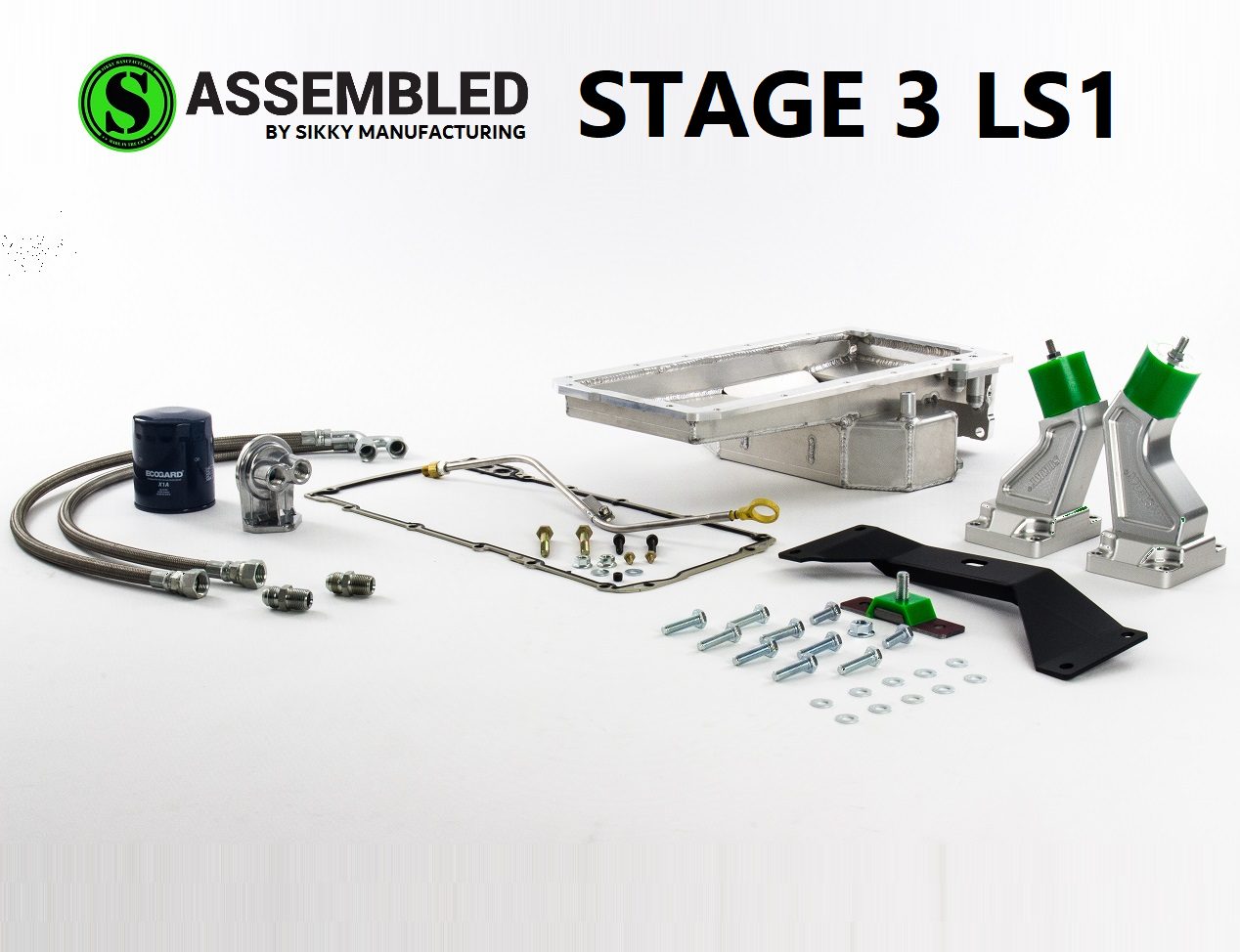

Sikky Stage 3 BMW E36 LS1 Package (w/ Wiring Harness)

DescriptionSikky Stage 3 packages are a master swap kit that includes a brand new wiring harness made by Wiring Specialties. This kit is ideal for those who want to buy an LS1 and drop it into their chassis with little left to do. The only pieces left to assembled are a fuel kit, intake, radiator and fans (coming soon from Sikky). Fitment Notes:Designed to work with left hand drive (LHD) vehicles only.Can be used on LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, LSX and any other LS based engine using this engine mount and oil pan bolt pattern.Relocation or Removal of the ABS module is required for this swap. This will require new brake lines to be made.For proper header fitment you will need to use aftermarket eye ball arms (rear attachment point for lower control arm) as well as Sikky’s low profile steering shaft. Learn more about the Sikky Low Profile Steering Shaft.Transmission and Shifter- This kit is developed to work with the T56, T56 magnum, TR6060 and CD009 transmission.Requires no modifications to the factory front sub frame. Stage 3 Package Includes:Aluminum Race Oil Pan High Capacity Design6061 CNC Machined Flanges from 1/2″ Aluminum Retaining OEM like Structural Rigidity (not flimsy like other aftermarket pans)Rear Flange at Bell Housing Allows Install of Factory Dust ShieldsBaffle and Trap Doors to Prevent Oil StarvationNew OEM Oil Pan GasketF-Body Camaro Pickup Tube RequiredRemote mount filter Kit  -10 AN Fittings (4) and Stainless Braided Lines (2)Remote Oil Filter BaseHigh Quality Oil FilterAll Fittings and HardwareEngine Mounts CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum MountsCustom Urethane Bushings with True IsolationHigh Grade Hardware KitProper Engine Placement and Axle AlignmentLifetime Warranty on Engine Mounts         Trans Mount CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum MountCNC Bent Steel Mount BracketUrethane BushingHigh Grade Hardware KitLifetime Warranty on Transmission MountDriveshaft  Steel One Piece Driveshaft with High Strength 1310 U-jointsDriveshaft is for 4 bolt differential flanges.Headers  BMW E36, 1 3/4″ Primaries, 3″ Collector, Stainless SteelV-Band Flange Pre-Installed (clamp and other half included)Includes New Gaskets and BoltsLS1 Wiring Harness Supports any F-Body LS1 from 1999-2002 Camaro, Firebird, Trans Am or Corvette, any LS1 from 2004 Pontiac GTO or any Truck/SUV LSx/Vortec engine from 1999-2004 Silverado, Suburban, Tahoe, Escalade with DRIVE BY CABLE THROTTLE ONLYNO CORE HARNESS or additional wiring required. Complete plug and play harness.OEM wire colors used, where applicableFireproof fiberglass sleeving used in high-temp sections near the manifold & turbo (-40°C/-40°F to 450°C/ 845°F operating temperature)Point-to-Point continuity tested on every wireConstructed using exact OEM connectors and sealsMade with high temp TXL wire with adhesive shrink tubing (-40°C/-40°F to 125°C/ 257°F operating temperature)Wrapped in lightweight nylon loom (-94°C/-137°F to 125°C/ 257°F operating temperature)Includes a charge harness and improved groundsFully tested after production for an easy plug-and-play installation
