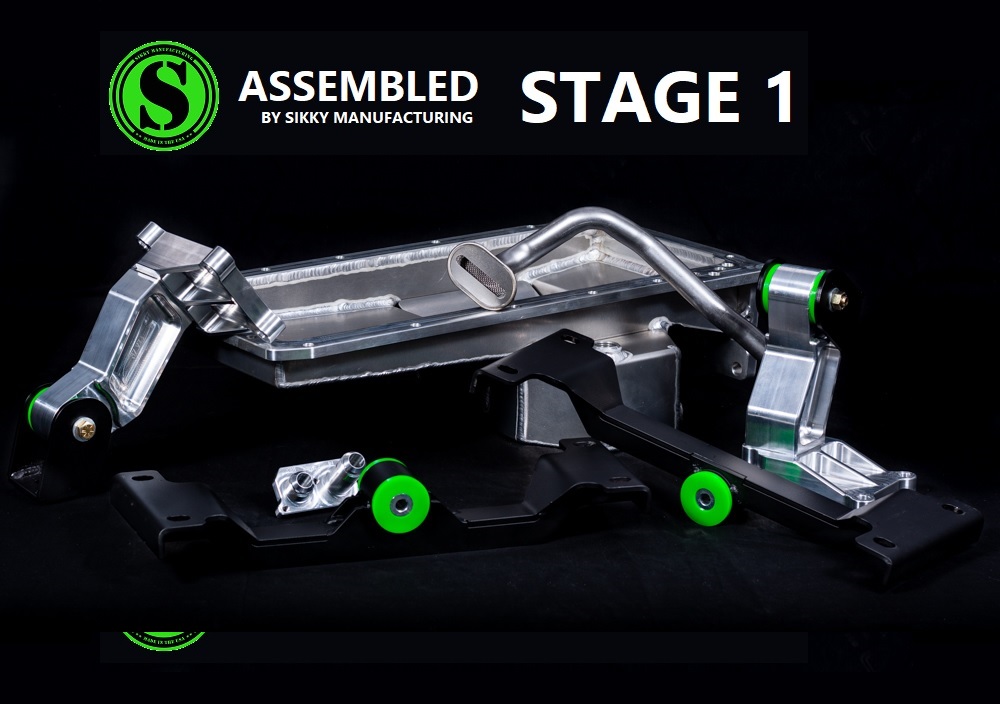

DescriptionThis Stage 1 packages includes the basic components needed to mount your engine into your BMW E39. This consists of Sikky’s industry leading motor mounts, trans mount, and oil pan and is ideal for a do-it-yourself type who wants to source or fabricate their own headers, wiring etc. Swap accessories such as stainless steel headers are available and come standard in our Stage 2 Swap Package. Fitment Notes:Designed to work with left hand drive (LHD) vehicles only.Can be used on LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, LSX and any other LS based engine using this engine mount and oil pan bolt pattern.Transmission and Shifter- This kit is developed to work with both the T56, T56 Magnum, Tr6060 and CD009 transmissions.Requires no modifications to the factory front sub frame.Works with only i6 front subframe and suspension, if you have a 540 you will need to swap these parts out as the steering gear box and subframe do not work with our kit. Stage 1 package details:Aluminum Race Oil PanDesigned to fit perfectly around the front sub frame of the BMW E39 5 Series chassis when using a Sikky mount kitHigh capacity 5 1/2” deep front sump design with side kick outs for maximum oil capacity1/2” thick CNC machined 6061 Billet Aluminum Flange and back plateMachined gasket surface to ensure no gasket leaksRigid design like the OEM GM pan to ensure maximum strength and durabilityIncluded back plate compatible with factory dust covers to prevent debris entering the bell housingHigh ground clearance design keeps the pan from hanging out the bottom of the carHigh capacity 5 quart sump (does not include oil filter or oil filter relocation)Comes with Pan mounted bottom port remote oil filter adapter, Magnetic drain plug and Hardware Kit (utilizes some factory hardware not included).F-Body Camaro Pickup Tube and new OEM gasket sold separately Remote mount filter Kit -10 AN Fittings (4) and Stainless Braided Lines (2)Remote Oil Filter BaseHigh Quality Oil FilterAll Fittings and HardwareEngine Mounts CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum MountsCustom Urethane Bushings with True IsolationHigh Grade Hardware KitProper Engine Placement and Axle AlignmentLifetime Warranty on Engine Mounts Trans Mount CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum MountCNC Bent Steel Mount BracketUrethane BushingHigh Grade Hardware KitLifetime Warranty on Transmission Mount
