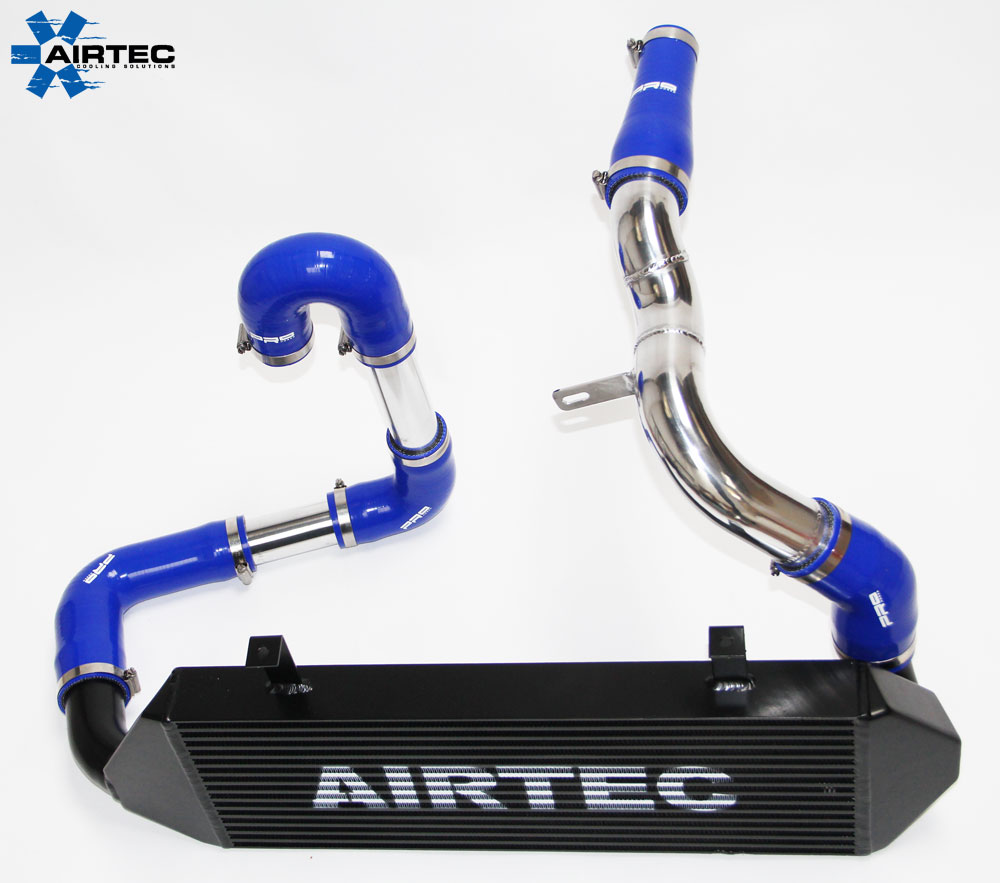

AIRTEC Motorsport 60mm Core Intercooler Upgrade for Vauxhall Opel Astra H Mk5 1.9 Diesel

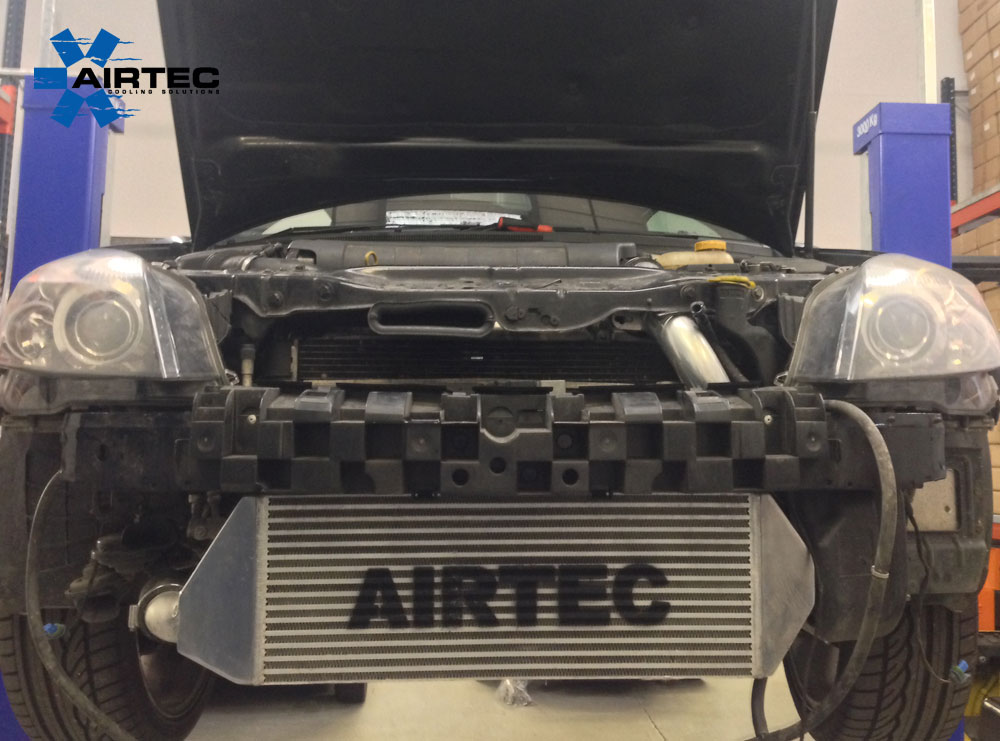

Description A great upgrade for all Astra 1.9 CDTI, especially with a remapped ECU. Perfect for fast road and even track use. As fitted to our AIRTEC Motorsport demo car. TESTED Test Results at AMD Tuning Essex 11/02/14 – Test vehicle fitted with AIRTEC Motorsport intercooler and dyno’d with standard map, then Stage 1 remap. Standard map with AIRTEC Motorsport intercooler upgrade: Run 1 – Intake temperature 115 degrees (charge air temp going into intercooler) & 13 degrees outlet temperature (charge air temp coming out of intercooler) Run 2– Intake temperature 118 degrees (charge air temp going into intercooler) & 18 degrees outlet temperature (charge air temp coming out of intercooler) Run 3 – Intake temperature 119 degrees (charge air temp going into intercooler) & 18 degrees outlet temperature (charge air temp coming out of intercooler) Conclusion: Over the three test runs the AIRTEC Motorsport intercooler cooled down the charged air temperature by an average of 101 degrees. Stage 1map with AIRTEC Motorsport intercooler upgrade: Run 1 – Intake temperature 128 degrees (charge air temp going into intercooler) & 19 degrees outlet temperature (charge air temp coming out of intercooler) Run 2– Intake temperature 128 degrees (charge air temp going into intercooler) & 23 degrees outlet temperature (charge air temp coming out of intercooler) Run 3 – Intake temperature 136 degrees (charge air temp going into intercooler) & 25 degrees outlet temperature (charge air temp coming out of intercooler) Conclusion: Over the test runs the AIRTEC intercooler cooled down the charged Air Temperature by an average of 108 degrees. Dimensions: Width: 875mm Height: 230mm Depth: 60mm Features: Huge 60mm core Intercooler with flowed cast end tanks, this means less welding and a stronger Intercooler High quality 4/5ply silicon hose’s with alloy joiners & stainless jubilee clips Powder coated standard intercooler support brackets Retains original fog lights without modification Fitting instructions and all required fixings Unbeatable value for money Proven power increases for fast road and track Available in Satin Black or Natural Silver Registered Design Right number: Application Pending AIRTEC part no: ATINTVAUX2
