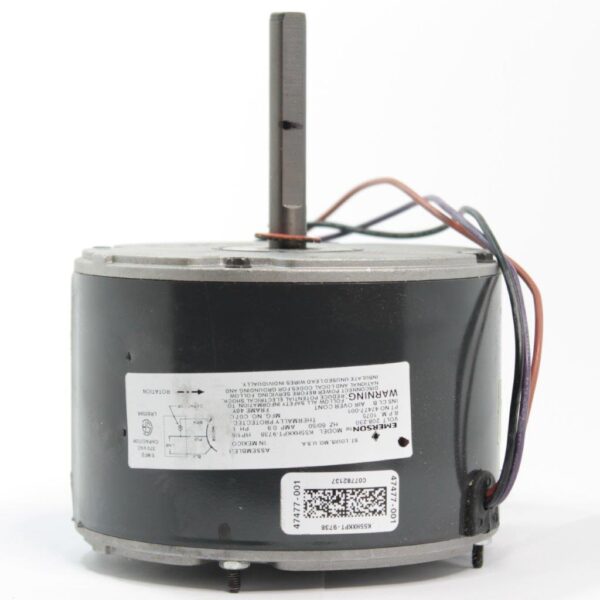

Emerson K55HXKPT-9738 PSC Condenser Fan Motor, 1/8 HP, 208–230 VAC, Single-Phase, Frame 48Y

Emerson K55HXKPT-9738 PSC Condenser Fan Motor, 1/8 HP, 208–230 VAC, Single-Phase, Frame 48Y (air-over continuous duty), Class B insulation, OEM Allied Air Enterprises R47477-001 replacement Condition: New. Box marked Allied Air Enterprises; motor labeled Emerson. Carton/ID numbers include: Cat No. R47477-001 / 47477 / 000474770010 / L055KPT9738013J / 0 06 62551 25608. Factory packaging may show storage wear; motor unused. A genuine Emerson (Regal/Genteq family) K55-series permanent split capacitor (PSC) condenser fan motor used in residential and light-commercial outdoor condensing units. This build—K55HXKPT-9738—is a 1/8 HP, 208–230 V, single-phase motor with 48Y frame and air-over, continuous duty design (TEAO style for condenser airflow cooling). It’s specified by Allied Air Enterprises under R47477-001 / 47477 and commonly drops in where an OEM 1/8 HP 230 V Allied/Armstrong/Ducane/Concord** condenser fan motor is called out. Reuse your belly-band mount and fan blade; match nameplate RPM and capacitor value before energizing. On-motor markings (provided): Emerson Model K55HXKPT-9738, HP 1/8, Volt 208–230, MFG No C07C, INS CL B, air over cont, Frame 48Y. Carton markings (provided): Allied Air Enterprises, Cat No R47477-001, 47477, 000474770010, L055KPT9738013J, 0 06 62551 25608. Features PSC condenser fan motor for outdoor units; engineered for air-over continuous duty 1/8 HP, 208–230 VAC, 1-phase; standard HVAC replacement class Frame 48Y cylindrical body for belly-band mounting (reuse existing strap) Class B insulation for typical condenser ambient conditions OEM cross: Allied Air R47477-001 / 47477 (see Cross-Refs) Field-reversible rotation (wire per diagram to match blade airflow) Designed for use with a run capacitor (typical for this model family: 5 µF / 370 VAC—confirm your nameplate) Applications / Spheres of Application Residential split-system A/C condensers (Allied Air family brands such as Armstrong Air, Ducane, Concord, AirEase, etc.; verify by part list) Light commercial package units calling for 1/8 HP, 208–230 V condenser fans Service stock for HVAC contractors needing an OEM-spec Allied Air swap Cross-Referenced Models / Numbers Emerson / Genteq engineering: K55HXKPT-9738 (this motor) Allied Air Enterprises OEM: R47477-001, 47477 Carton/build codes seen: L055KPT9738013J, 000474770010, barcode 0 06 62551 25608 (Use model/serial and parts manual to confirm exact compatibility.) Comparable Products (same class) Genteq/Regal 1/8 HP 208–230 V PSC condenser motors (other K55 variants) Century (A.O. Smith), MARS, Packard 1/8 HP 230 V PSC condenser motors (48-frame) (Match HP, voltage, RPM, frame/mount, shaft, rotation, and capacitor.) Motor Specifications (as labeled / typical for this build) Manufacturer/Brand: Emerson (Regal/Genteq family) Model: K55HXKPT-9738 Horsepower: 1/8 HP Voltage: 208–230 VAC, Single-phase, 60 Hz Enclosure/Duty: Air-over, continuous duty (TEAO style; relies on condenser airflow) Insulation Class: B Frame: 48Y (belly-band mount) Rotation: Reversible (report direction as CCWSE/CWLE; set by lead wiring) Run Capacitor: 5 µF / 370 VAC typical for this Emerson build (verify on your motor label) Nameplate Amps / RPM: Not shown on provided markings; K55 1/8 HP outdoor motors are commonly 825 or 1075 RPM and ~0.7–1.0 A. Confirm on your nameplate or OEM spec before install. Country of Origin: Mexico (per Allied/Genteq manufacturing) Installation Notes (HVAC tech essentials) Match the capacitor value/voltage to the motor nameplate. A 440 VAC-rated cap is acceptable replacement for 370 VAC. Verify RPM against the original motor. RPM mismatch changes condenser CFM and head pressure. Set blade depth & pitch per OEM shroud spec; tighten hub on clean shaft flats. Mounting: Reuse belly-band; orient weep/drain features down; secure leads away from blade. Rotation: Briefly bump run to verify airflow; swap designated leads to reverse if needed (see wiring tag). Part of Larger Systems Outdoor condensing sections of Allied Air brands (Armstrong Air, Ducane, Concord, Airease, etc.) using OEM R47477-001 motors in the 1/8 HP class. Related Emerson K55 condenser fan motor; Allied Air R47477-001 motor; 1/8 HP 230V PSC fan motor; 48Y frame belly-band motor; air-over continuous duty; device to drive condenser fan blade; reversible CCWSE/CWLE; HVAC outdoor unit replacement motor Common Requests: “Is K55HXKPT-9738 the correct replacement for R47477-001 / 47477 in my Allied unit?” “What capacitor value does this motor require? (Typically 5 µF/370 VAC—confirm nameplate.)” “Is the rotation reversible and which way is it from the shaft end?” “Is this a 48Y frame for a belly-band mount?” “What is the RPM (825 vs 1075) of this exact sub-build?” (Check your label/OEM book.) Manufacturer Trademarks Disclaimer: Emerson®, Genteq®, Allied Air Enterprises®, Armstrong Air®, Ducane®, Concord®, and other brand names or part numbers are the property of their respective owners. They are used solely for identification and compatibility reference and do not imply endorsement.   P110
