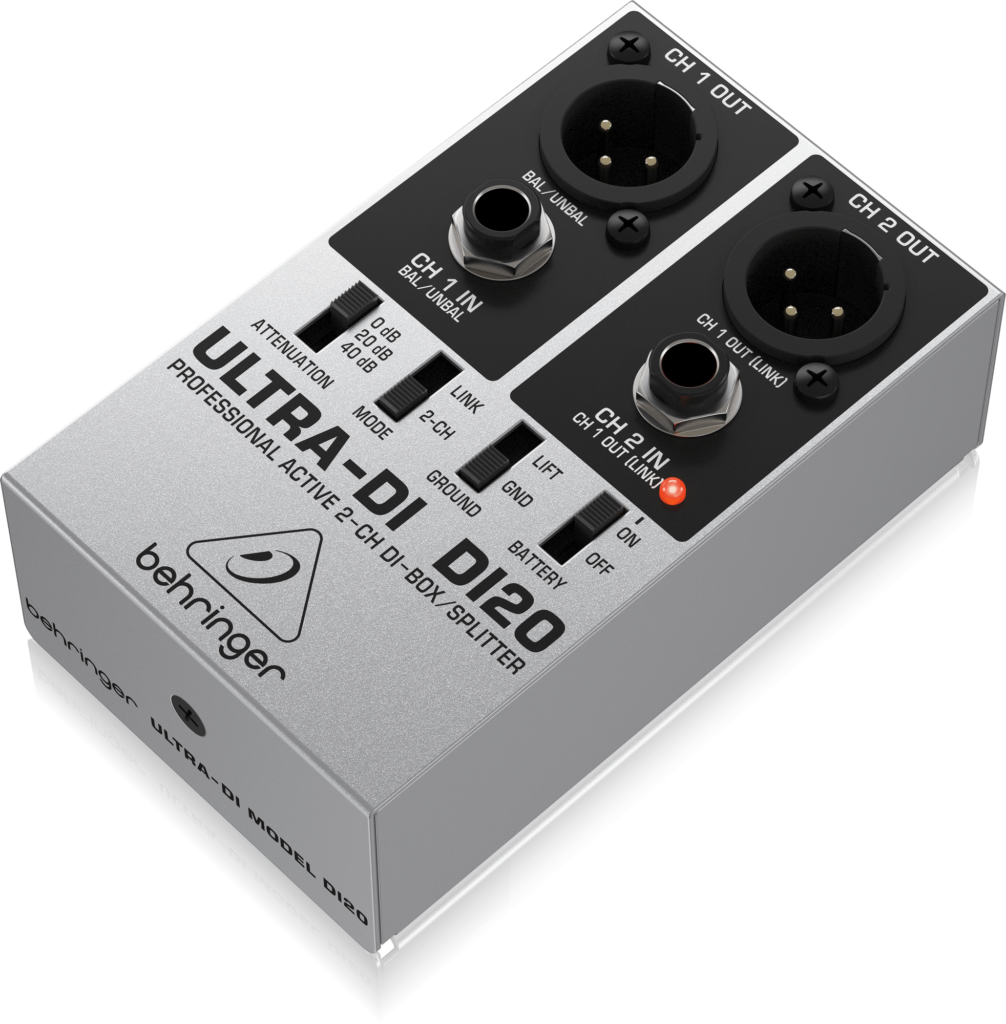

BEHRINGER ULTRA-DI DI20 Professional Active 2-Channel DI-Box/Splitter

The ULTRA-DI DI20 is a one-of-a-kind DI (Direct Injection) box that can convert up to two separate, unbalanced ¼ ” TRS lines into two balanced XLR outputs. It also offers a 2-channel / link mode for flexible use as a mono-, 2-channel box or splitter. In link mode, channel 1 can be output simultaneously via the two balanced XLR outputs as well as via an unbalanced jack (6.3 mm). The 3-position input attenuator can accommodate input levels of up to 48 dBu, and a “Ground Lift” switch eliminates ground loops. The power supply can either be done with a battery (9 V) or with phantom power (48 V). Jack input XLR Out -20 / 40dB PAD (up to 3000 W) Operable via battery (9V) or phantom (15-52V) With the ground switch, the ground loop can be eliminated Battery-off switchable Additional Split mode (channel 1 assigns signal to both XLR outputs) In link mode, Channel 2 outputs the signal from channel 1 balanced Robust housing Professional and multi-purpose direct injection boxes for stage and studio applications Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers Converts 2 independent unbalanced 1/4” TRS line inputs into 2 balanced XLR outputs Additional Split mode (channel 1 assigns signal to both XLR outputs) Ultra-flat frequency response due to servo-balanced operation Internal battery automatically shuts off when phantom power is applied Allows direct connection to speaker outputs with up to 3,000 Watts Ground Lift Switch eliminates typical ground loop problems Input 2 usable as channel 1 Link output (additional to XLR output) ¼” TRS and gold-plated XLR connectors Ultra-rugged, road-suitable metal case
